NETLAB+ includes virtual topologies that can be used to teach a variety of courses, including Linux, Microsoft or Cyber Security. Pods using these topologies can be created very quickly using NETLAB+'s pod cloning and automated network features. Click on the links below to see the general IT topologies that are included with NETLAB+.


NETLAB+ VE Customers: The virtual topologies shown below are not yet available on NETLAB+ VE, they will be made available in a future software release.

These pods require VMware vCenter implementation and NETLAB+ Virtual Machine Inventory features in version 2011.R2 and later.

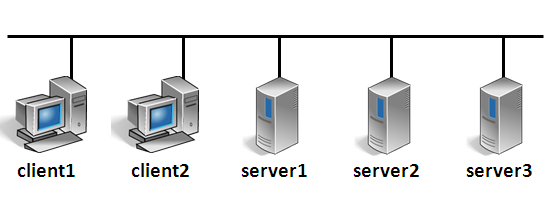

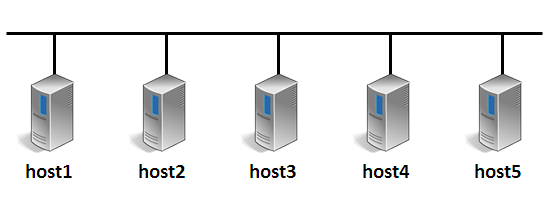

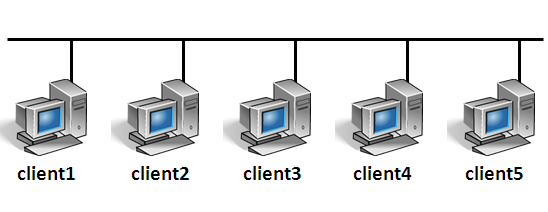

Example of a 5 VM Topology

1 Host Topologies

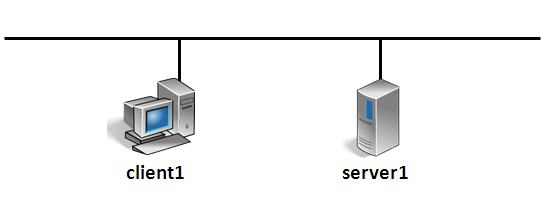

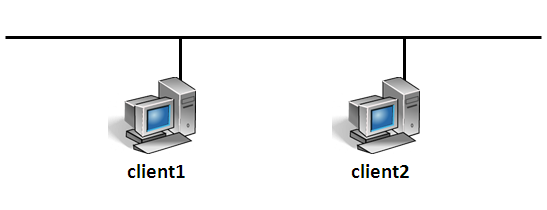

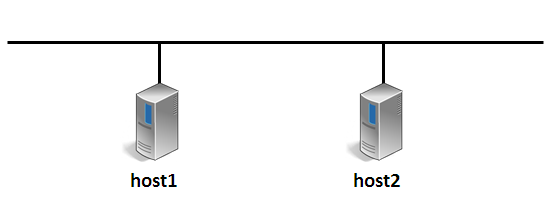

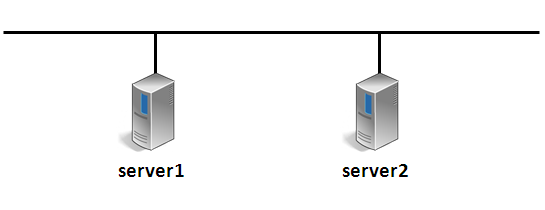

2 Host Topologies

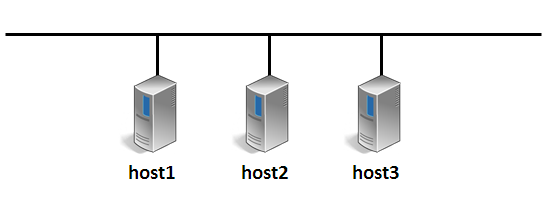

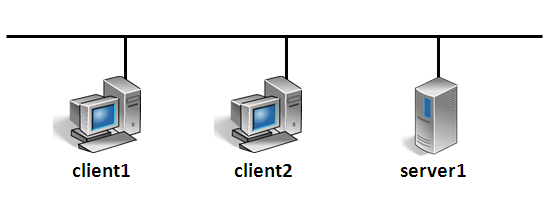

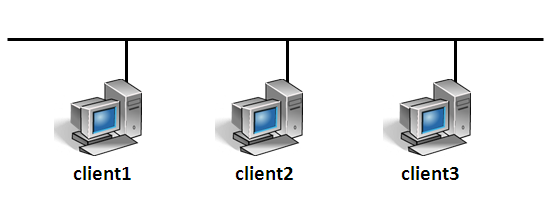

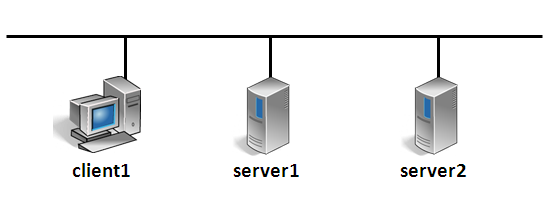

3 Host Topologies

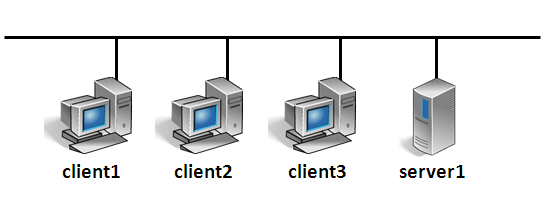

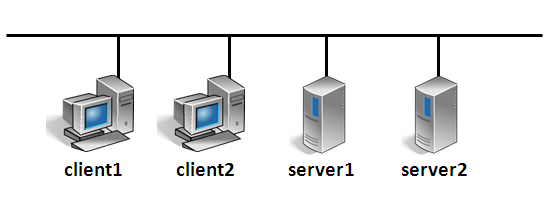

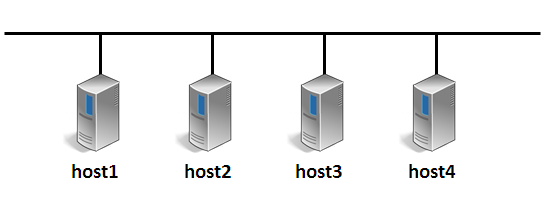

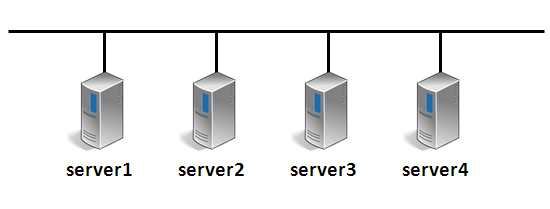

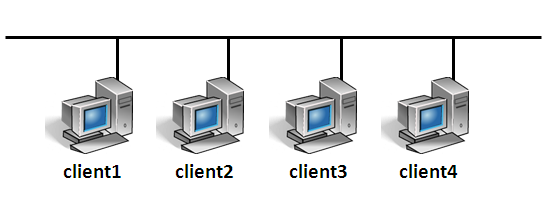

4 Host Topologies

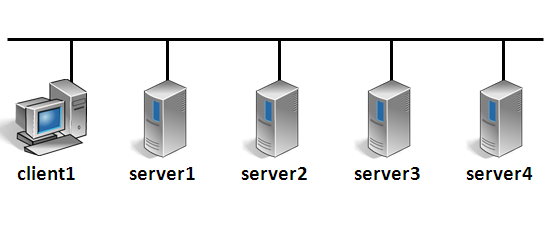

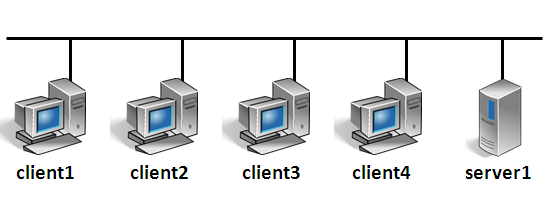

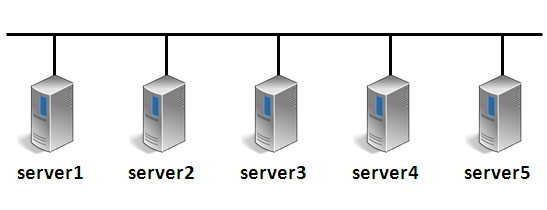

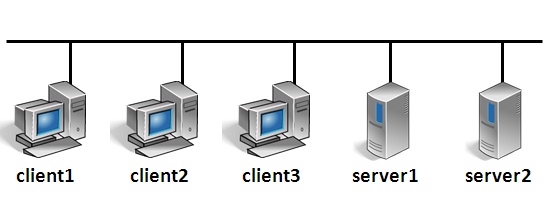

5 Host Topologies
