This quick reference page provides a summary of the specifications of the EMC ISM Pod. The EMC ISM pod was designed to support the EMC Information Storage and Management (ISM) course.

The EMC ISM pod is a 100% virtual machine pod consisting of three virtual machines. Linked together through virtual networking, these three virtual machines provide the environment for a student or team to perform the EMC ISM labs.

You may request virtual machine templates for the EMC ISM pod from CSSIA.

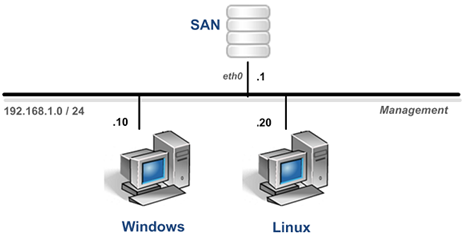

Lab Topology

EMC ISM Pod

Virtual Machines

A description of the virtual machines in the EMC ISM Pod is provided in the table below.

Virtual Machine Role
SAN Openfiler Storage Area Network appliance
Windows A Windows client
Linux A Linux client

Storage Requirements

You should budget 8 gigabytes for each ISM master pod and 4 gigabytes each user pod instance. The datastore containing an ISM pod must be accessible to the VMware host to which it is assigned, as either directly attached local storage or a Storage Area Network (SAN).

Details of the storage requirements for each of the lab virtual machines in the ISM pod are provided in the table below. Some fluctuation in the numbers may occur.

Lab Virtual Machines Master Pod at Lab 0
(using full clones)
User Pod after Last Lab(using linked clones)
SAN 400MB 3.5GB
Windows 3.96GB 4.06GB
Linux 3.45GB 3.53GB
Total Recommended 8.00GB 12.00GB


Virtual Machine Templates

The Center for Systems Security and Information Assurance (CSSIA) provides virtual machine templates to install on the pod.

To request access to the preconfigured virtual machine templates from CSSIA:

  1. Go to the CSSIA Resources page: http://www.cssia.org/cssia-resources.cfm.
  2. Select VM Image Sharing Agreement - Image Sharing Agreement.
  3. Select VM Image Sharing Agreement to open the request form.
  4. Complete and submit your access request by following the instructions on the request form.
  5. CSSIA will email a link, along with a username and password to access the download server. Access to the download server is provided only to customers who are current with their NETLAB+ support contract and are participants in the appropriate partner programs (i.e. Cisco Networking Academy, VMware IT Academy, and/or EMC Academic Alliance).
  6. Once access to the download server has been established, the virtual machines can be deployed directly to the vCenter Server by clicking on File > Deploy OVF Template in the vClient window and copying the link into the location field.
  7. The deployment will start after the username and password are entered.
  8. Each virtual machine is deployed individually.
  9. Please refer to the appropriate pod installation guide for the virtual machines you are downloading.

Please refer to the NETLAB+ EMC ISM Pod Installation Guide for details on installing the VMs on your NETLAB+ system.
