This quick reference page provides a summary of the specifications of the Security+ v3 pod.

You may request virtual machine templates for the Security+ v3 (SECPLUS v3) pod from CSSIA.

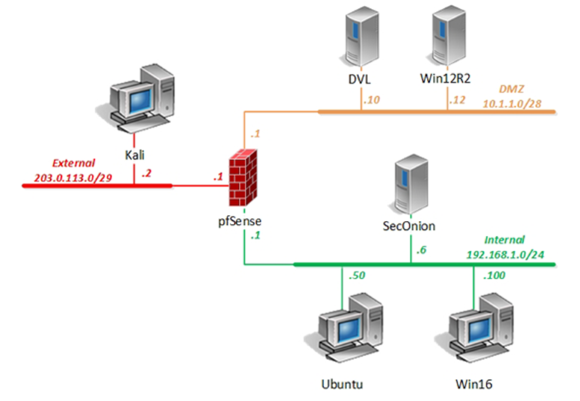

Lab Topology

SECURITY+

Virtual Machines - Storage Requirements

Details of the storage requirements for each of the virtual machines in the Security+ v3 Pod are provided in the table below. The Virtual Machine Deployment Names are provided as a suggested naming convention. The Security+ v3 course will consume 74.1 GB of storage per each master pod instance. Some fluctuation in the numbers may occur.

Virtual Machine Virtual Machine Deployment Name OVF/OVA Initial Master Pod
(thin provisioning)
DVL NDG_SecPlus3_Master.DVL 2.6 GB 7.2 GB
Kali NDG_SecPlus3_Master.Kali 4.6 GB 11.7 GB
pfSense NDG_SecPlus3_Master.pfSense 285 MB 730 MB
SecOnion NDG_SecPlus3_Master.SecOnion 5.6 GB 16.1 GB
Ubuntu NDG_SecPlus3_Master.Ubuntu 1.7 GB 4.8 GB
Win12R2 NDG_SecPlus3_Master.Win12R2 8.2 GB 15.6 GB
Win16 NDG_SecPlus3_Master.Win16 10 GB 18 GB
Total   33 GB 74.1 GB


Virtual Machine Templates

The Center for Systems Security and Information Assurance (CSSIA) provides virtual machine templates to install on the pod.

To request access to the preconfigured virtual machine templates from CSSIA:

  1. Go to the CSSIA Resources page: http://www.cssia.org/cssia-resources.cfm.
  2. Select VM Image Sharing Agreement – Image Sharing Agreement.
  3. Select VM Image Sharing Agreement to open the request form.
  4. Complete and submit your access request by following the instructions on the request form.
  5. CSSIA will email a link, along with a username and password to access the download server. Access to the download server is provided only to customers who are current with their NETLAB+ support contract and are participants in the appropriate partner programs (i.e. Cisco Networking Academy, VMware IT Academy, and/or EMC Academic Alliance).
  6. Once access to the download server has been established, the virtual machines can be deployed directly to the vCenter Server by clicking on File > Deploy OVF Template in the vClient window and copying the link into the location field.
  7. The deployment will start after the username and password are entered.
  8. Each virtual machine is deployed individually.
  9. Please refer to the appropriate pod installation guide for the virtual machines you are downloading.

Please refer to the NETLAB+ Security+ v3 Pod Install and Configuration Guide for details on installing the VMs on your NETLAB+ system.
